TVAnalysedPulseGenerator Class Reference
[rootana]

The intended ancestor of all TAnalysedPulse generators, used to create TAPs from TPIs. More...

#include <TVAnalysedPulseGenerator.h>

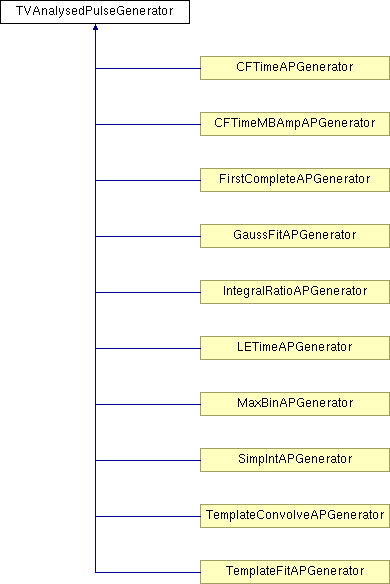

Inheritance diagram for TVAnalysedPulseGenerator:

Public Member Functions
	TVAnalysedPulseGenerator (const char name, TAPGeneratorOptions opts)
virtual	~TVAnalysedPulseGenerator ()
virtual int	ProcessPulses (const PulseIslandList &pil, AnalysedPulseList &apl)=0
	This method is called on each vector of pulses from a MIDAS event.
virtual bool	MayDivideTPIs ()=0
void	SetPulseList (PulseIslandList *list)
template<typename TypeOfTAP >
TypeOfTAP *	MakeNewTAP (int parent_index) const
	The suggested method for constructing a new TAP.
TAnalysedPulse *	MakeNewTAP (int parent_index) const
bool	Debug () const
IDs::channel	GetChannel () const
std::string	GetBank () const
const IDs::source &	GetSource () const
	Get the source id for this generator being used on the current channel.
virtual void	CalibratePulses (AnalysedPulseList &theAnalysedPulses) const
Static Public Member Functions
static const char *	TapType ()
Protected Member Functions
virtual void	SetChannel (const std::string &det)
	Set the channel for this generator. Should NOT be called by user code.
Private Attributes
IDs::source	fSource
	The source identifying the generator and detector being processed.
std::string	fBankName
	The bankname in the MIDAS file used by this channel.
bool	fDebug
	Debug flagged set from modules file. Used, for example, in deciding whether or not to print helpful messages.
PulseIslandList *	fPulseList
	The vector of TPIs being processed.
bool	fCanCalibrate
	Flag if we have calibration constants for this generator.
double	fAdcToEnergyGain
	Cache the calibration constants so we don't need to look up in the setup navigator each time.
double	fAdcToEnergyOffset
Friends
class	MakeAnalysedPulses

Detailed Description

The intended ancestor of all TAnalysedPulse generators, used to create TAPs from TPIs.

Author:: Ben Krikler

All TAP generators should be derived from this, and have their ProcessPulses and MayDivideTPIs methods defined.

Definition at line 28 of file TVAnalysedPulseGenerator.h.

Constructor & Destructor Documentation

TVAnalysedPulseGenerator::TVAnalysedPulseGenerator	(	const char *	name,
		TAPGeneratorOptions *	opts
	)

Definition at line 5 of file TVAnalysedPulseGenerator.cpp.

References TAPGeneratorOptions::Debug(), fAdcToEnergyGain, fAdcToEnergyOffset, fCanCalibrate, fDebug, fSource, IDs::source::Generator(), SetupNavigator::GetAdcToEnergyConstant(), SetupNavigator::GetAdcToEnergyGain(), GetChannel(), TAPGeneratorOptions::GetChannel(), modules::options::HasOption(), SetupNavigator::Instance(), SetChannel(), and modules::options::StringDescription().

00005                                                                                              :
00006    fAdcToEnergyGain(1), fAdcToEnergyOffset(0){
00007    if(opts){
00008        fDebug=( opts->HasOption("debug") || opts->Debug());
00009    }
00010    fSource.Generator()=IDs::generator(name,opts->StringDescription());
00011    SetChannel(opts->GetChannel());
00012    try{
00013       fAdcToEnergyGain  = SetupNavigator::Instance()->GetAdcToEnergyGain(    GetChannel());
00014       fAdcToEnergyOffset= SetupNavigator::Instance()->GetAdcToEnergyConstant(GetChannel());
00015       fCanCalibrate=true;
00016    } catch(Except::InvalidDetector& e){
00017       std::cout<<"TVAnalysedPulseGenerator: WARNING: No calibration data an be found for the '"<<GetChannel()<<"' channel."
00018                  "  Will continue, but TAPs will not have an energy value filled."<<std::endl;
00019       fCanCalibrate=false;
00020    }
00021 }

virtual TVAnalysedPulseGenerator::~TVAnalysedPulseGenerator ( ) [inline, virtual]

Definition at line 32 of file TVAnalysedPulseGenerator.h.

00032 {};

Member Function Documentation

void TVAnalysedPulseGenerator::CalibratePulses ( AnalysedPulseList & theAnalysedPulses ) const [virtual]

Definition at line 23 of file TVAnalysedPulseGenerator.cpp.

References fAdcToEnergyGain, fAdcToEnergyOffset, and fCanCalibrate.

00023                                                                                        {
00024    if(fCanCalibrate){
00025       for(AnalysedPulseList::iterator i_tap=theAnalysedPulses.begin(); i_tap != theAnalysedPulses.end(); ++i_tap){
00026          const double amplitude=(*i_tap)->GetAmplitude();
00027          (*i_tap)->SetEnergy(fAdcToEnergyGain * amplitude + fAdcToEnergyOffset);
00028       }
00029    }
00030 }

bool TVAnalysedPulseGenerator::Debug ( ) const [inline]

Definition at line 77 of file TVAnalysedPulseGenerator.h.

References fDebug.

Referenced by GaussFitAPGenerator::FitPulse(), TemplateConvolveAPGenerator::ProcessPulses(), and IntegralRatioAPGenerator::ProcessPulses().

00077 {return fDebug;};

std::string TVAnalysedPulseGenerator::GetBank ( ) const [inline]

A convenience method for analysis to get the channel ID of the channel being analysed

Definition at line 85 of file TVAnalysedPulseGenerator.h.

References fBankName.

00085 {return fBankName;};

IDs::channel TVAnalysedPulseGenerator::GetChannel ( ) const [inline]

A convenience method for analysis to get the channel ID of the channel being analysed

Definition at line 81 of file TVAnalysedPulseGenerator.h.

References IDs::source::Channel(), and fSource.

Referenced by FirstCompleteAPGenerator::DrawPulse(), FirstCompleteAPGenerator::FirstCompleteAPGenerator(), IntegralRatioAPGenerator::ProcessPulses(), TemplateConvolveAPGenerator::TemplateConvolveAPGenerator(), TemplateFitAPGenerator::TemplateFitAPGenerator(), and TVAnalysedPulseGenerator().

00081 {return fSource.Channel();};

const IDs::source& TVAnalysedPulseGenerator::GetSource ( ) const [inline]

Get the source id for this generator being used on the current channel.

Useful for a generator to know the full source much like in the above GetChannel method, but this could also be useful for checking that this generator is the one that made a given TAP in later analysis by comparing this value to that stored in the TAP itself.

Definition at line 94 of file TVAnalysedPulseGenerator.h.

References fSource.

Referenced by MakeNewTAP(), and IntegralRatioAPGenerator::ProcessPulses().

00094 {return fSource;};

TAnalysedPulse* TVAnalysedPulseGenerator::MakeNewTAP ( int parent_index ) const [inline]

Definition at line 73 of file TVAnalysedPulseGenerator.h.

00073                                                          {
00074             return MakeNewTAP<TAnalysedPulse>(parent_index);
00075         }

template<typename TypeOfTAP >

TypeOfTAP * TVAnalysedPulseGenerator::MakeNewTAP ( int parent_index ) const [inline]

The suggested method for constructing a new TAP.

In the process of constructing TAP, information that isn't immediately obvious how to get needs to be passed to TAP. This method returns a pointer to a TAP construced for you, and all you need to pass it is the TPulseIslandID.

In the case where a generator wants to add extra information to the standard TAP information, we expect people to derive from TAnalysedPulse. If your generator is one of these, then use the template argument to produce the type of TAP you desire. Note that this forces the constructor of the specialised TAP to be the same as for TAnalysedPulse itself.

For example, for to make a specialied analysed pulse called TSpecialAnalysedPulse (original, huh?) you would do:

 TSpecialAnalysedPulse* tsap=MakeNewTAP<TSpecialAnalysedPulse>(parent_index);

Parameters:

[in] parent_index The TPulseIslandID of the TPI being used to make the new TAP.

Template Parameters:

in]

TypeOfTAP The type of specialisation of TAnalysedPulse that you want to create.

Definition at line 137 of file TVAnalysedPulseGenerator.h.

References fPulseList, and GetSource().

Referenced by FirstCompleteAPGenerator::AnalyseOneTpi(), SimpIntAPGenerator::ProcessPulses(), MaxBinAPGenerator::ProcessPulses(), CFTimeMBAmpAPGenerator::ProcessPulses(), and CFTimeAPGenerator::ProcessPulses().

00137                                                                            {
00138     TypeOfTAP* pulse=NULL;
00139     TPulseIsland* parent = fPulseList->at(parent_index);
00140     pulse=new TypeOfTAP(GetSource(),parent_index,parent);
00141     return pulse;
00142 }

virtual bool TVAnalysedPulseGenerator::MayDivideTPIs ( ) [pure virtual]

Todo:: Document this

Implemented in CFTimeAPGenerator, CFTimeMBAmpAPGenerator, FirstCompleteAPGenerator, GaussFitAPGenerator, IntegralRatioAPGenerator, LETimeAPGenerator, MaxBinAPGenerator, SimpIntAPGenerator, TemplateConvolveAPGenerator, and TemplateFitAPGenerator.

virtual int TVAnalysedPulseGenerator::ProcessPulses	(	const PulseIslandList &	pil,
		AnalysedPulseList &	apl
	)			`[pure virtual]`

This method is called on each vector of pulses from a MIDAS event.

Parameters:

`[in]`	pil	The vector of TPIs to produce TAPs from.
`[out]`	apl	The vector of TAPs to append the new TAPs to.

Implemented in CFTimeAPGenerator, CFTimeMBAmpAPGenerator, FirstCompleteAPGenerator, GaussFitAPGenerator, IntegralRatioAPGenerator, LETimeAPGenerator, MaxBinAPGenerator, SimpIntAPGenerator, TemplateConvolveAPGenerator, and TemplateFitAPGenerator.

virtual void TVAnalysedPulseGenerator::SetChannel ( const std::string & det ) [inline, protected, virtual]

Set the channel for this generator. Should NOT be called by user code.

Called by MakeAnalysedPulses to tell this generator what channel it is looking at.

Definition at line 108 of file TVAnalysedPulseGenerator.h.

References IDs::source::Channel(), fBankName, fSource, SetupNavigator::GetBank(), and SetupNavigator::Instance().

Referenced by TVAnalysedPulseGenerator().

00108                                                      {
00109            fSource.Channel()=det;
00110            fBankName= SetupNavigator::Instance()->GetBank(det);
00111          };

void TVAnalysedPulseGenerator::SetPulseList ( PulseIslandList * list ) [inline]

Definition at line 44 of file TVAnalysedPulseGenerator.h.

References fPulseList.

00044 {fPulseList=list;};

static const char* TVAnalysedPulseGenerator::TapType ( ) [inline, static]

Reimplemented in GaussFitAPGenerator, IntegralRatioAPGenerator, TemplateConvolveAPGenerator, and TemplateFitAPGenerator.

Definition at line 96 of file TVAnalysedPulseGenerator.h.

00096 {return TAnalysedPulse::Class()->GetName();}

Friends And Related Function Documentation

friend class MakeAnalysedPulses [friend]

Definition at line 101 of file TVAnalysedPulseGenerator.h.

Member Data Documentation

double TVAnalysedPulseGenerator::fAdcToEnergyGain [private]

Cache the calibration constants so we don't need to look up in the setup navigator each time.

Definition at line 133 of file TVAnalysedPulseGenerator.h.

Referenced by CalibratePulses(), and TVAnalysedPulseGenerator().

double TVAnalysedPulseGenerator::fAdcToEnergyOffset [private]

Definition at line 133 of file TVAnalysedPulseGenerator.h.

Referenced by CalibratePulses(), and TVAnalysedPulseGenerator().

std::string TVAnalysedPulseGenerator::fBankName [private]

The bankname in the MIDAS file used by this channel.

Definition at line 121 of file TVAnalysedPulseGenerator.h.

Referenced by GetBank(), and SetChannel().

bool TVAnalysedPulseGenerator::fCanCalibrate [private]

Flag if we have calibration constants for this generator.

Definition at line 131 of file TVAnalysedPulseGenerator.h.

Referenced by CalibratePulses(), and TVAnalysedPulseGenerator().

bool TVAnalysedPulseGenerator::fDebug [private]

Debug flagged set from modules file. Used, for example, in deciding whether or not to print helpful messages.

Definition at line 125 of file TVAnalysedPulseGenerator.h.

Referenced by Debug(), and TVAnalysedPulseGenerator().

PulseIslandList* TVAnalysedPulseGenerator::fPulseList [private]

The vector of TPIs being processed.

Definition at line 128 of file TVAnalysedPulseGenerator.h.

Referenced by MakeNewTAP(), and SetPulseList().

IDs::source TVAnalysedPulseGenerator::fSource [private]

The source identifying the generator and detector being processed.

Definition at line 111 of file TVAnalysedPulseGenerator.h.

Referenced by GetChannel(), GetSource(), SetChannel(), and TVAnalysedPulseGenerator().

The documentation for this class was generated from the following files:

rootana/src/TAP_generators/TVAnalysedPulseGenerator.h
rootana/src/TAP_generators/TVAnalysedPulseGenerator.cpp
