TAnalysedPulse Class Reference
[rootana]

A TAnalysedPulse (TAP) is the product of the second level of analysis in the framework. More...

#include <TAnalysedPulse.h>

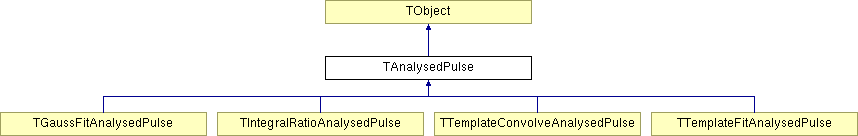

Inheritance diagram for TAnalysedPulse:

Classes
struct	Tag
Public Member Functions
	TAnalysedPulse ()
	This constructor must exist for ROOT I/O, but should not be used as you cannot set the source outside of the constructor.
virtual void	Copy (TObject &rhs) const
	TAnalysedPulse (const IDs::source &sourceID, const TPulseIslandID &parentID, const TPulseIsland *parentTPI)
	The constructor one should use if we need use one.
virtual	~TAnalysedPulse ()
void	Reset (Option_t *o="")
	Clear the TAP. This will probably not be used.
virtual void	Draw (const TH1F *tpi_pulse) const
	Visualize the TAP interpretation of the TPI.
Getters

TPulseIslandID	GetParentID () const
int	GetTPILength () const
double	GetAmplitude () const
double	GetTime () const
double	GetIntegral () const
double	GetEnergy () const
double	GetPedestal () const
double	GetTriggerTime () const
const IDs::source &	GetSource () const
Setters
The TAP generators will set whatever TAP values it must through these methods. Not all need be set; the default values are obviously unphysical and several Sanity methods are provided to check if a value was set later in the analysis.
void	SetParentID (const TPulseIslandID &val)
void	SetTPILength (const int &val)
void	SetAmplitude (const double &val)
void	SetTime (const double &val)
void	SetIntegral (const double &val)
void	SetEnergy (const double &val)
void	SetPedestal (const double &val)
void	SetTriggerTime (const double &val)
void	SetParentTPIProperties (const TPulseIslandID &id, const TPulseIsland *parent)
Sanity

bool	IsParentIDSet () const
bool	IsTPILengthSet () const
bool	IsAmplitudeSet () const
bool	IsTimeSet () const
bool	IsIntegralSet () const
bool	IsEnergySet () const
bool	IsPedestalSet () const
bool	IsTriggerTimeSet () const
Private Member Functions
	ClassDef (TAnalysedPulse, 5)
Private Attributes
TPulseIslandID	fParentID
int	fTPILength
double	fAmplitude
double	fTime
double	fIntegral
double	fEnergy
double	fPedestal
double	fTriggerTime
FlyWeight< IDs::source, Tag >	fSource
Static Private Attributes
static const int	fDefaultValue = definitions::DefaultValue
	To enable sanity checks, we have an unphysical value that all fields are set to.

Detailed Description

A TAnalysedPulse (TAP) is the product of the second level of analysis in the framework.

A TAP is generated from a TPulseIsland and represents the next higher level, more intuitive representation of a physical hit in a detector. It has properties more commonly associated with a physics event, such as time and energy, that are derived from the TPI using the methods in generator (derived from TVAnalysedPulseGenerator). Different generators can calculate the same quantitites using different techniques, leading to multiple TAPs coming from a single TPI.

Definition at line 30 of file TAnalysedPulse.h.

Constructor & Destructor Documentation

TAnalysedPulse::TAnalysedPulse ( )

This constructor must exist for ROOT I/O, but should not be used as you cannot set the source outside of the constructor.

Definition at line 30 of file TAnalysedPulse.cpp.

00030                               :
00031   fParentID(fDefaultValue),
00032   fTPILength(fDefaultValue),
00033   fAmplitude(fDefaultValue),
00034   fTime(fDefaultValue),
00035   fIntegral(fDefaultValue),
00036   fEnergy(fDefaultValue),
00037   fPedestal(fDefaultValue),
00038   fTriggerTime(fDefaultValue){
00039     //Reset();
00040 }

TAnalysedPulse::TAnalysedPulse	(	const IDs::source &	sourceID,
		const TPulseIslandID &	parentID,
		const TPulseIsland *	parentTPI
	)

The constructor one should use if we need use one.

This constructor, which is the only constructor the user should use, takes all the information neessary to identify the genesis of this TAP. Generally a user would not use this constructor, but would instead call TVAnalysedPulseGenerator::MakeNewTAP which determines the source and TPI from the TPulseIslandID and where in the code it's being called.

Parameters:

`[in]`	sourceID	The source identifying the detector the TPI is from and what generator processed it.
`[in]`	parentID	The position in the TGD vector of the TPI used to make this TAP.
`[in]`	parentTPI	The pulse that was used to produce this TAP.

Definition at line 16 of file TAnalysedPulse.cpp.

References SetParentTPIProperties().

00017                                                                            :
00018   fParentID(fDefaultValue),
00019   fTPILength(fDefaultValue),
00020   fAmplitude(fDefaultValue),
00021   fTime(fDefaultValue),
00022   fIntegral(fDefaultValue),
00023   fEnergy(fDefaultValue),
00024   fPedestal(fDefaultValue),
00025   fTriggerTime(fDefaultValue),
00026   fSource(sourceID){
00027     SetParentTPIProperties(parentID, parentTPI);
00028 }

virtual TAnalysedPulse::~TAnalysedPulse ( ) [inline, virtual]

Definition at line 73 of file TAnalysedPulse.h.

00073 {};

Member Function Documentation

TAnalysedPulse::ClassDef	(	TAnalysedPulse	,
		5
	)			`[private]`

virtual void TAnalysedPulse::Copy ( TObject & rhs ) const [inline, virtual]

Reimplemented in TTemplateConvolveAnalysedPulse.

Definition at line 40 of file TAnalysedPulse.h.

References fAmplitude, fEnergy, fIntegral, fParentID, fPedestal, fSource, fTime, fTPILength, and fTriggerTime.

00040                                       {
00041     TObject::Copy(rhs);
00042     if(rhs.InheritsFrom(Class())){
00043       TAnalysedPulse* tap=static_cast<TAnalysedPulse*>(&rhs);
00044       tap->fParentID=fParentID;
00045       tap->fTPILength=fTPILength;
00046       tap->fAmplitude=fAmplitude;
00047       tap->fTime=fTime;
00048       tap->fIntegral=fIntegral;
00049       tap->fEnergy=fEnergy;
00050       tap->fPedestal=fPedestal;
00051       tap->fTriggerTime=fTriggerTime;
00052       tap->fSource=fSource;
00053     }
00054   }

void TAnalysedPulse::Draw ( const TH1F * tpi_pulse ) const [virtual]

Visualize the TAP interpretation of the TPI.

Since there are different methods for determining the physical values in the TAP from the TPI, here we can get a visual feel for how right those values might be. If passed a TH1F representation of the TPI, Draw makes a new histogram with the same histogram dimensions and a single bin at the determined time weighted with the determined amplitude.

Todo:: Clean this up

Parameters:

[in] tpi_pulse A histogram representation of the parent pulse

Reimplemented in TGaussFitAnalysedPulse, TIntegralRatioAnalysedPulse, TTemplateConvolveAnalysedPulse, and TTemplateFitAnalysedPulse.

Definition at line 53 of file TAnalysedPulse.cpp.

References fAmplitude, and fTime.

Referenced by ExportPulse::PlotTAP().

00053                                                    {
00054         if(tpi_pulse) {
00055           std::string name=tpi_pulse->GetName();
00056           int n_bins=tpi_pulse->GetXaxis()->GetNbins();
00057           double x_max=tpi_pulse->GetXaxis()->GetXmax();
00058           double x_min=tpi_pulse->GetXaxis()->GetXmin();
00059           TH1F* tap_pulse=new TH1F((name+"_AP").c_str(),("TAP for "+name).c_str(),n_bins,x_min,x_max);
00060           int bin=tap_pulse->FindBin(fTime);
00061           tap_pulse->SetBinContent(bin,fAmplitude);
00062         }
00063 }

double TAnalysedPulse::GetAmplitude ( ) const [inline]

Definition at line 100 of file TAnalysedPulse.h.

References fAmplitude.

Referenced by TTemplateFitAnalysedPulse::Draw(), TTemplateConvolveAnalysedPulse::Draw(), TGaussFitAnalysedPulse::Draw(), TTemplateFitAnalysedPulse::GetBinContent(), PulseViewer::GetParameterValue(), PlotTAP_selfCorrelation::PassesCutA(), TemplateFitAPGenerator::RefitWithTwo(), and TTemplateFitAnalysedPulse::SetAmplitudeScaleFactor().

00100 {return fAmplitude;};

double TAnalysedPulse::GetEnergy ( ) const [inline]

Definition at line 103 of file TAnalysedPulse.h.

References fEnergy.

Referenced by PulseViewer::GetParameterValue(), and TME_Al50_EvdE::ProcessEntry().

00103 {return fEnergy;};

double TAnalysedPulse::GetIntegral ( ) const [inline]

Definition at line 102 of file TAnalysedPulse.h.

References fIntegral.

Referenced by PulseViewer::GetParameterValue(), and PlotIntegralRatios::ProcessEntry().

00102 {return fIntegral;};

TPulseIslandID TAnalysedPulse::GetParentID ( ) const [inline]

Definition at line 98 of file TAnalysedPulse.h.

References fParentID.

Referenced by ExportPulse::AddToExportList(), TTemplateFitAnalysedPulse::GetHisto(), and TemplateFitAPGenerator::RefitWithTwo().

00098 {return fParentID;};

double TAnalysedPulse::GetPedestal ( ) const [inline]

Definition at line 104 of file TAnalysedPulse.h.

References fPedestal.

Referenced by TTemplateConvolveAnalysedPulse::Draw(), TGaussFitAnalysedPulse::Draw(), TTemplateFitAnalysedPulse::GetBinContent(), PulseViewer::GetParameterValue(), and TemplateFitAPGenerator::RefitWithTwo().

00104 {return fPedestal;};

const IDs::source& TAnalysedPulse::GetSource ( ) const [inline]

Definition at line 106 of file TAnalysedPulse.h.

References fSource, and FlyWeight< ValueType, UniqueTag >::GetValue().

Referenced by ExportPulse::AddToExportList(), TTemplateConvolveAnalysedPulse::Draw(), TTemplateFitAnalysedPulse::GetHisto(), MaxTimeDiffDPGenerator::ProcessPulses(), and TDetectorPulse::TDetectorPulse().

00106 {return fSource.GetValue();};

double TAnalysedPulse::GetTime ( ) const [inline]

Definition at line 101 of file TAnalysedPulse.h.

References fTime.

Referenced by TTemplateFitAnalysedPulse::Draw(), TTemplateConvolveAnalysedPulse::Draw(), TGaussFitAnalysedPulse::Draw(), TTemplateFitAnalysedPulse::GetBinContent(), PulseViewer::GetParameterValue(), TemplateFitAPGenerator::InitializeSecondPulse(), IsTimeOrdered(), MaxTimeDiffDPGenerator::ProcessPulses(), TemplateFitAPGenerator::RefitWithTwo(), and TTemplateFitAnalysedPulse::SetTimeOffset().

00101 {return fTime;};

int TAnalysedPulse::GetTPILength ( ) const [inline]

Definition at line 99 of file TAnalysedPulse.h.

References fTPILength.

Referenced by TTemplateFitAnalysedPulse::GetHisto(), and PulseViewer::GetParameterValue().

00099 {return fTPILength;};

double TAnalysedPulse::GetTriggerTime ( ) const [inline]

Definition at line 105 of file TAnalysedPulse.h.

References fTriggerTime.

Referenced by PulseViewer::GetParameterValue().

00105 {return fTriggerTime;};

bool TAnalysedPulse::IsAmplitudeSet ( ) const [inline]

Definition at line 135 of file TAnalysedPulse.h.

References fAmplitude, and fDefaultValue.

00135 {return fAmplitude!=fDefaultValue;};

bool TAnalysedPulse::IsEnergySet ( ) const [inline]

Definition at line 138 of file TAnalysedPulse.h.

References fDefaultValue, and fEnergy.

00138 {return fEnergy!=fDefaultValue;};

bool TAnalysedPulse::IsIntegralSet ( ) const [inline]

Definition at line 137 of file TAnalysedPulse.h.

References fDefaultValue, and fIntegral.

00137 {return fIntegral!=fDefaultValue;};

bool TAnalysedPulse::IsParentIDSet ( ) const [inline]

Definition at line 133 of file TAnalysedPulse.h.

References fDefaultValue, and fParentID.

00133 {return fParentID!=fDefaultValue;};

bool TAnalysedPulse::IsPedestalSet ( ) const [inline]

Definition at line 139 of file TAnalysedPulse.h.

References fDefaultValue, and fPedestal.

00139 {return fPedestal!=fDefaultValue;};

bool TAnalysedPulse::IsTimeSet ( ) const [inline]

Definition at line 136 of file TAnalysedPulse.h.

References fDefaultValue, and fTime.

00136 {return fTime!=fDefaultValue;};

bool TAnalysedPulse::IsTPILengthSet ( ) const [inline]

Definition at line 134 of file TAnalysedPulse.h.

References fDefaultValue, and fTPILength.

00134 {return fTPILength!=fDefaultValue;};

bool TAnalysedPulse::IsTriggerTimeSet ( ) const [inline]

Definition at line 140 of file TAnalysedPulse.h.

References fDefaultValue, and fTriggerTime.

00140 {return fTriggerTime!=fDefaultValue;};

void TAnalysedPulse::Reset ( Option_t * o = "" )

Clear the TAP. This will probably not be used.

Definition at line 42 of file TAnalysedPulse.cpp.

References fAmplitude, fDefaultValue, fEnergy, fIntegral, fParentID, fPedestal, fTime, fTPILength, and fTriggerTime.

00042                                       {
00043   fParentID=fDefaultValue;
00044   fTPILength=fDefaultValue;
00045   fAmplitude=fDefaultValue;
00046   fTime=fDefaultValue;
00047   fIntegral=fDefaultValue;
00048   fEnergy=fDefaultValue;
00049   fPedestal=fDefaultValue;
00050   fTriggerTime=fDefaultValue;
00051 }

void TAnalysedPulse::SetAmplitude ( const double & val ) [inline]

Definition at line 120 of file TAnalysedPulse.h.

References fAmplitude.

Referenced by FirstCompleteAPGenerator::AnalyseOneTpi(), TemplateConvolveAPGenerator::ProcessPulses(), MaxBinAPGenerator::ProcessPulses(), IntegralRatioAPGenerator::ProcessPulses(), and CFTimeMBAmpAPGenerator::ProcessPulses().

00120 { fAmplitude=val;};

void TAnalysedPulse::SetEnergy ( const double & val ) [inline]

Definition at line 123 of file TAnalysedPulse.h.

References fEnergy.

00123 { fEnergy=val;};

void TAnalysedPulse::SetIntegral ( const double & val ) [inline]

Definition at line 122 of file TAnalysedPulse.h.

References fIntegral.

Referenced by FirstCompleteAPGenerator::AnalyseOneTpi(), TemplateFitAPGenerator::ProcessPulses(), TemplateConvolveAPGenerator::ProcessPulses(), SimpIntAPGenerator::ProcessPulses(), and IntegralRatioAPGenerator::ProcessPulses().

00122 { fIntegral=val;};

void TAnalysedPulse::SetParentID ( const TPulseIslandID & val ) [inline]

Definition at line 118 of file TAnalysedPulse.h.

References fParentID.

Referenced by SetParentTPIProperties().

00118 { fParentID=val;};

void TAnalysedPulse::SetParentTPIProperties	(	const TPulseIslandID &	id,
		const TPulseIsland *	parent
	)

Definition at line 65 of file TAnalysedPulse.cpp.

References TPulseIsland::GetClockTickInNs(), TPulseIsland::GetPulseLength(), TPulseIsland::GetTimeStamp(), SetParentID(), SetTPILength(), and SetTriggerTime().

Referenced by TAnalysedPulse().

00066                                                                       {
00067   SetParentID(id);
00068   if(!pulse) {
00069     std::cerr<<"NULL pointer to TPulseIsland passed as parent for TAnalysedPulse."<<std::endl;
00070     return;
00071   }
00072   SetTPILength(pulse->GetPulseLength());
00073   SetTriggerTime(pulse->GetTimeStamp()*pulse->GetClockTickInNs());
00074 }
