BaseModule Class Reference

#include <BaseModule.h>

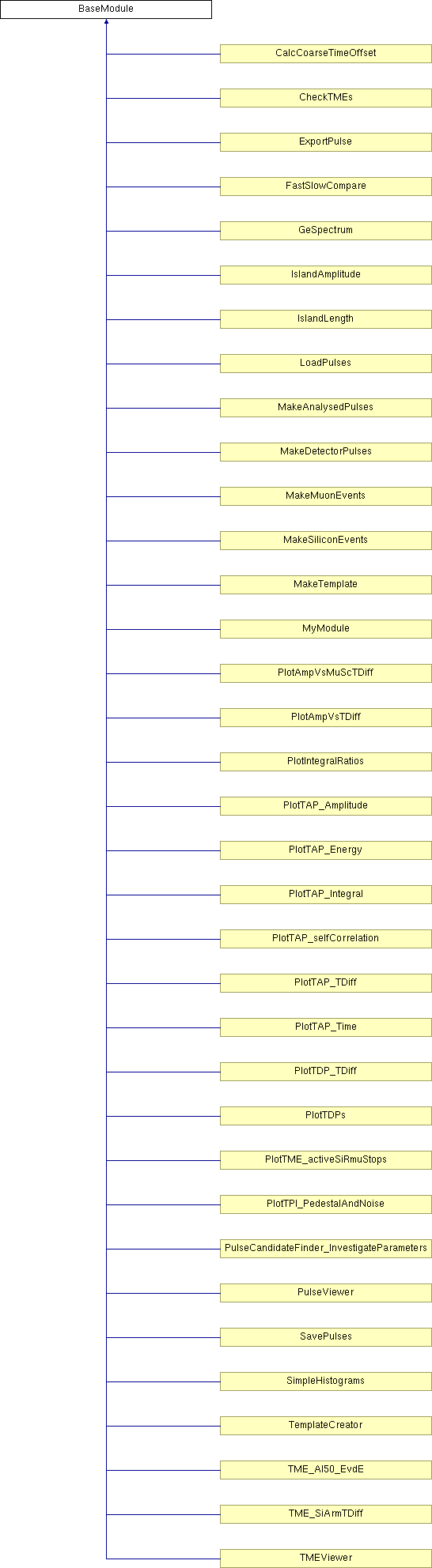

Inheritance diagram for BaseModule:

List of all members.

Public Member Functions
	BaseModule (const char *module_name, modules::options *opts=NULL, bool with_directory=true)
	Constructor of a module class. Provides several virtual methods that should be overloaded in the derived class. Derived classes should hard-code their name as the first argument to the constructor.
virtual	~BaseModule ()
int	ProcessGenericEntry (TGlobalData *gData, const TSetupData *gSetup)
int	Preprocess (TGlobalData *gData, const TSetupData *gSetup)
	Method called by the main pre-process loop.
int	Postprocess (TGlobalData *gData, const TSetupData *gSetup)
	Method called by the main pre-process loop.
virtual int	BeforeFirstEntry (TGlobalData *gData, const TSetupData *setup)=0
virtual int	AfterLastEntry (TGlobalData *gData, const TSetupData *setup)=0
void	SetAlias (const std::string &alias)
std::string	GetAlias () const
const char *	GetName () const
	Get the name of this module as given to the constructor of the base class.
Protected Member Functions
bool	Debug () const
TDirectory *	GetDirectory () const
	Get the TDirectory for this module.
TDirectory *	GetDirectory (const std::string &name="")
Protected Attributes
TDirectory *	dir
Private Member Functions
virtual int	ProcessEntry (TGlobalData *gData, const TSetupData *gSetup)=0
	The big kahuna. Overload this in the derived class and it will be called for each event.
Private Attributes
TSetupData *	fSetup
bool	fDebug
std::string	fName
TDirectory *	fDirectory
std::string	fAlias

---

Detailed Description

Base class for a generic analysis module. Provides several virtual methods for the derived class to overload. Also sets up a directory where all histograms and other ROOT objects created by the module will be saved in the output root file.

Definition at line 16 of file BaseModule.h.

---

Constructor & Destructor Documentation

BaseModule::BaseModule	(	const char *	module_name,
		modules::options *	opts = NULL,
		bool	with_directory = true
	)

Constructor of a module class. Provides several virtual methods that should be overloaded in the derived class. Derived classes should hard-code their name as the first argument to the constructor.

Parameters:

	module_name	The name of the module
	opts	Options given to the module from the modules file
	setup	[To be removed soon]

Many modules use 'dir' still which was the old protected pointer to the modules directory. To prevent things being broken so soon, we keep this pointer available, but be warned that it will be removed shortly...

Definition at line 7 of file BaseModule.cpp.

References dir, fDebug, fDirectory, fName, GetAlias(), modules::options::GetAlias(), modules::options::GetBool(), modules::options::GetOption(), modules::options::HasOption(), modules::navigator::Instance(), SetAlias(), and modules::options::StringDescription().

                                                                               :
        fSetup(TSetupData::Instance()),fDebug(false),fName(name),fDirectory(NULL){
  // Pass common options
  if(opts){
    fDebug=(opts->HasOption("debug") && (opts->GetOption("debug").empty() || opts->GetBool("debug")));
    SetAlias(opts->GetAlias());
  }
  // Make a directory for this module if desired
  if(with_directory){
    // check if one exists
    fDirectory=gDirectory->GetDirectory(fName.c_str());
    // if not create one
    if(!fDirectory) fDirectory=gDirectory->mkdir(fName.c_str());
    // now make check if there's more than one instance of this module
    if(modules::navigator::Instance()->HowMany(fName)>1) {
        // and if there is, make a subdirectory and change into it
        fDirectory=fDirectory->mkdir(GetAlias().c_str());
    }
    fDirectory->SetTitle(opts->StringDescription().c_str());
    fDirectory->cd();
    // write the config into the file as a string
    TObjString *title=new TObjString(opts->StringDescription().c_str());
    title->Write();
  } else {
      // Set this module to use the top-level directory of the file
      fDirectory=gDirectory->GetDirectory("/");
  }
  dir=fDirectory;
}

BaseModule::~BaseModule

(

)

[virtual]

Definition at line 40 of file BaseModule.cpp.

{
}

---

Member Function Documentation

virtual int BaseModule::AfterLastEntry	(	TGlobalData *	gData,
		const TSetupData *	setup
	)			[pure virtual]

Optional method which is called once after the main event loop Can be used to dump a summary or finalise a histogram

Returns:

0 on sucess and non-zero if a problem occurred

Implemented in TME_Al50_EvdE, TME_SiArmTDiff, TMEViewer, IslandAmplitude, IslandLength, FastSlowCompare, GeSpectrum, LoadPulses, PlotIntegralRatios, CalcCoarseTimeOffset, CheckTMEs, ExportPulse, PlotAmpVsMuScTDiff, PlotAmpVsTDiff, PlotTAP_Amplitude, PlotTAP_Energy, PlotTAP_Integral, PlotTAP_selfCorrelation, PlotTAP_TDiff, PlotTAP_Time, PlotTDP_TDiff, PlotTDPs, PlotTME_activeSiRmuStops, PlotTPI_PedestalAndNoise, PulseViewer, SavePulses, MakeAnalysedPulses, PulseCandidateFinder_InvestigateParameters, TemplateCreator, MakeDetectorPulses, MakeMuonEvents, and MakeSiliconEvents.

Referenced by Postprocess().

virtual int BaseModule::BeforeFirstEntry	(	TGlobalData *	gData,
		const TSetupData *	setup
	)			[pure virtual]

Optional method which is called once before the main event loop Can be used to parse options and setup histograms.

Returns:

0 on sucess and non-zero if a problem occurred

Implemented in TME_Al50_EvdE, TME_SiArmTDiff, TMEViewer, IslandAmplitude, IslandLength, FastSlowCompare, GeSpectrum, LoadPulses, PlotIntegralRatios, CalcCoarseTimeOffset, CheckTMEs, ExportPulse, PlotAmpVsMuScTDiff, PlotAmpVsTDiff, PlotTAP_Amplitude, PlotTAP_Energy, PlotTAP_Integral, PlotTAP_selfCorrelation, PlotTAP_TDiff, PlotTAP_Time, PlotTDP_TDiff, PlotTDPs, PlotTME_activeSiRmuStops, PlotTPI_PedestalAndNoise, PulseViewer, SavePulses, MakeAnalysedPulses, PulseCandidateFinder_InvestigateParameters, TemplateCreator, MakeDetectorPulses, MakeMuonEvents, and MakeSiliconEvents.

Referenced by Preprocess().

bool BaseModule::Debug

(

)

const [inline, protected]

Check whether this module was asked to print extra debug information

Returns:

true if 'debug' was given in the modules file, false if not

Definition at line 71 of file BaseModule.h.

References fDebug.

Referenced by MakeAnalysedPulses::AddGenerator(), ExportPulse::AddToExportList(), PulseCandidateFinder_InvestigateParameters::AfterLastEntry(), PlotTPI_PedestalAndNoise::AfterLastEntry(), PlotTDPs::AfterLastEntry(), PlotTDP_TDiff::AfterLastEntry(), IslandLength::AfterLastEntry(), IslandAmplitude::AfterLastEntry(), MakeDetectorPulses::BeforeFirstEntry(), TemplateCreator::BeforeFirstEntry(), PulseCandidateFinder_InvestigateParameters::BeforeFirstEntry(), PlotTPI_PedestalAndNoise::BeforeFirstEntry(), PlotTDPs::BeforeFirstEntry(), PlotTDP_TDiff::BeforeFirstEntry(), IslandLength::BeforeFirstEntry(), IslandAmplitude::BeforeFirstEntry(), PulseViewer::ConsiderDrawing(), MakeAnalysedPulses::MakeAnalysedPulses(), MakeDetectorPulses::MakeGenerator(), ExportPulse::PlotTPI(), MakeDetectorPulses::ProcessEntry(), TemplateCreator::ProcessEntry(), PulseCandidateFinder_InvestigateParameters::ProcessEntry(), MakeAnalysedPulses::ProcessEntry(), PulseViewer::ProcessEntry(), PlotTDP_TDiff::ProcessEntry(), and TemplateCreator::StartTemplate().

{return fDebug;};

std::string BaseModule::GetAlias

(

)

const [inline]

Returns a string for the alias of this module. May be empty if no alias was given in the modules file.

Definition at line 63 of file BaseModule.h.

References fAlias.

Referenced by BaseModule().

{return fAlias;};

TDirectory * BaseModule::GetDirectory

(

const std::string &

name = ""

)

[protected]

Definition at line 77 of file BaseModule.cpp.

References dir, and fDirectory.

                                                         {
  if(name.empty()) return fDirectory;
  TDirectory* dir=fDirectory->GetDirectory(name.c_str());
  if(dir) return dir;
  return fDirectory->mkdir(name.c_str());
}

TDirectory* BaseModule::GetDirectory

(

)

const [inline, protected]

Get the TDirectory for this module.

Definition at line 74 of file BaseModule.h.

References fDirectory.

Referenced by TemplateCreator::AfterLastEntry(), SavePulses::AfterLastEntry(), TemplateCreator::BeforeFirstEntry(), PlotTDPs::BeforeFirstEntry(), ExportPulse::ExportPulse(), and TemplateCreator::ProcessEntry().

{return fDirectory;}

const char* BaseModule::GetName

(

)

const [inline]

Get the name of this module as given to the constructor of the base class.

Definition at line 66 of file BaseModule.h.

References fName.

Referenced by SavePulses::BeforeFirstEntry(), PlotTDPs::BeforeFirstEntry(), PlotTDP_TDiff::BeforeFirstEntry(), PlotTAP_Time::ProcessEntry(), PlotTAP_Energy::ProcessEntry(), PlotTAP_Amplitude::ProcessEntry(), and LoopSequence::Run().

{return fName.c_str();};

int BaseModule::Postprocess	(	TGlobalData *	gData,
		const TSetupData *	gSetup
	)

Method called by the main pre-process loop.

Does some simple work, then hooks into the derived class through AfterLastEntry.

Returns:

0 on sucess and non-zero if a problem occurred

Definition at line 66 of file BaseModule.cpp.

References AfterLastEntry(), and fDirectory.

Referenced by LoopSequence::Postprocess().

                                                                       {
  // This is called by our main routine and would allow later to split into different
  // process routines if we have more than one Tree and hence different tpyes of data input.

  if(fDirectory) fDirectory->cd();
  int ret = AfterLastEntry(gData, gSetup);
  gDirectory->cd("/");

  return ret;
}

int BaseModule::Preprocess	(	TGlobalData *	gData,
		const TSetupData *	gSetup
	)

Method called by the main pre-process loop.

Does some simple work, then hooks into the derived class through BeforeFirstEntry.

Returns:

0 on sucess and non-zero if a problem occurred

Definition at line 55 of file BaseModule.cpp.

References BeforeFirstEntry(), and fDirectory.

Referenced by LoopSequence::Preprocess().

                                                                      {
  // This is called by our main routine and would allow later to split into different
  // process routines if we have more than one Tree and hence different tpyes of data input.

  if(fDirectory) fDirectory->cd();
  int ret = BeforeFirstEntry(gData, gSetup);
  gDirectory->cd("/");

  return ret;
}

virtual int BaseModule::ProcessEntry	(	TGlobalData *	gData,
		const TSetupData *	gSetup
	)			[private, pure virtual]

The big kahuna. Overload this in the derived class and it will be called for each event.

Parameters:

	gData	Pointer to current map of all TPIs [ WILL CHANGE SHORTLY ]
	gSetup	Pointer to TSetupData for this run [ WILL CHANGE SHORTLY ]

Returns:

0 on success and non-zero on failure

Implemented in TME_Al50_EvdE, TME_SiArmTDiff, TMEViewer, IslandAmplitude, IslandLength, FastSlowCompare, GeSpectrum, LoadPulses, PlotIntegralRatios, CalcCoarseTimeOffset, CheckTMEs, ExportPulse, PlotAmpVsMuScTDiff, PlotAmpVsTDiff, PlotTAP_Amplitude, PlotTAP_Energy, PlotTAP_Integral, PlotTAP_selfCorrelation, PlotTAP_TDiff, PlotTAP_Time, PlotTDP_TDiff, PlotTDPs, PlotTME_activeSiRmuStops, PlotTPI_PedestalAndNoise, PulseViewer, SavePulses, MakeTemplate, MakeAnalysedPulses, PulseCandidateFinder_InvestigateParameters, TemplateCreator, MakeDetectorPulses, MakeMuonEvents, and MakeSiliconEvents.

Referenced by ProcessGenericEntry().

int BaseModule::ProcessGenericEntry	(	TGlobalData *	gData,
		const TSetupData *	gSetup
	)

Method called by the main event loop for each entry in the input root tree. Does some simple work, then hooks into the derived class through ProcessEntry.

Returns:

0 on sucess and non-zero if a problem occurred

Definition at line 44 of file BaseModule.cpp.

References fDirectory, and ProcessEntry().

Referenced by LoopSequence::Process().

                                                                               {
  // This is called by our main routine and would allow later to split into different
  // process routines if we have more than one Tree and hence different tpyes of data input.

  if(fDirectory) fDirectory->cd();
  int ret = ProcessEntry(gData, gSetup);
  gDirectory->cd("/");

  return ret;
}

void BaseModule::SetAlias

(

const std::string &

alias

)

[inline]

Sets the alias for this module, which should be provided in the modules file

Definition at line 59 of file BaseModule.h.

References fAlias.

Referenced by BaseModule().

{fAlias=alias;};

---

Member Data Documentation

TDirectory* BaseModule::dir [protected]

Many modules use 'dir' still which was the old protected pointer to the modules directory. To prevent things being broken so soon, we keep this pointer available, but be warned that it will be removed shortly...

Definition at line 98 of file BaseModule.h.

Referenced by BaseModule(), FastSlowCompare::FastSlowCompare(), GeSpectrum::GeSpectrum(), GetDirectory(), MakeMuonEvents::MakeMuonEvents(), and PlotAmpVsTDiff::PlotAmpVsTDiff().

std::string BaseModule::fAlias [private]

Definition at line 92 of file BaseModule.h.

Referenced by GetAlias(), and SetAlias().

bool BaseModule::fDebug [private]

Definition at line 89 of file BaseModule.h.

Referenced by BaseModule(), and Debug().

TDirectory* BaseModule::fDirectory [private]

Definition at line 91 of file BaseModule.h.

Referenced by BaseModule(), GetDirectory(), Postprocess(), Preprocess(), and ProcessGenericEntry().

std::string BaseModule::fName [private]

Definition at line 90 of file BaseModule.h.

Referenced by BaseModule(), and GetName().

TSetupData* BaseModule::fSetup [private]

Reimplemented in ExportPulse.

Definition at line 88 of file BaseModule.h.

---

The documentation for this class was generated from the following files:

• rootana/src/framework/BaseModule.h
• rootana/src/framework/BaseModule.cpp
